AW-3

See it for yourself

We’re proud to show off our flagship workhorse.

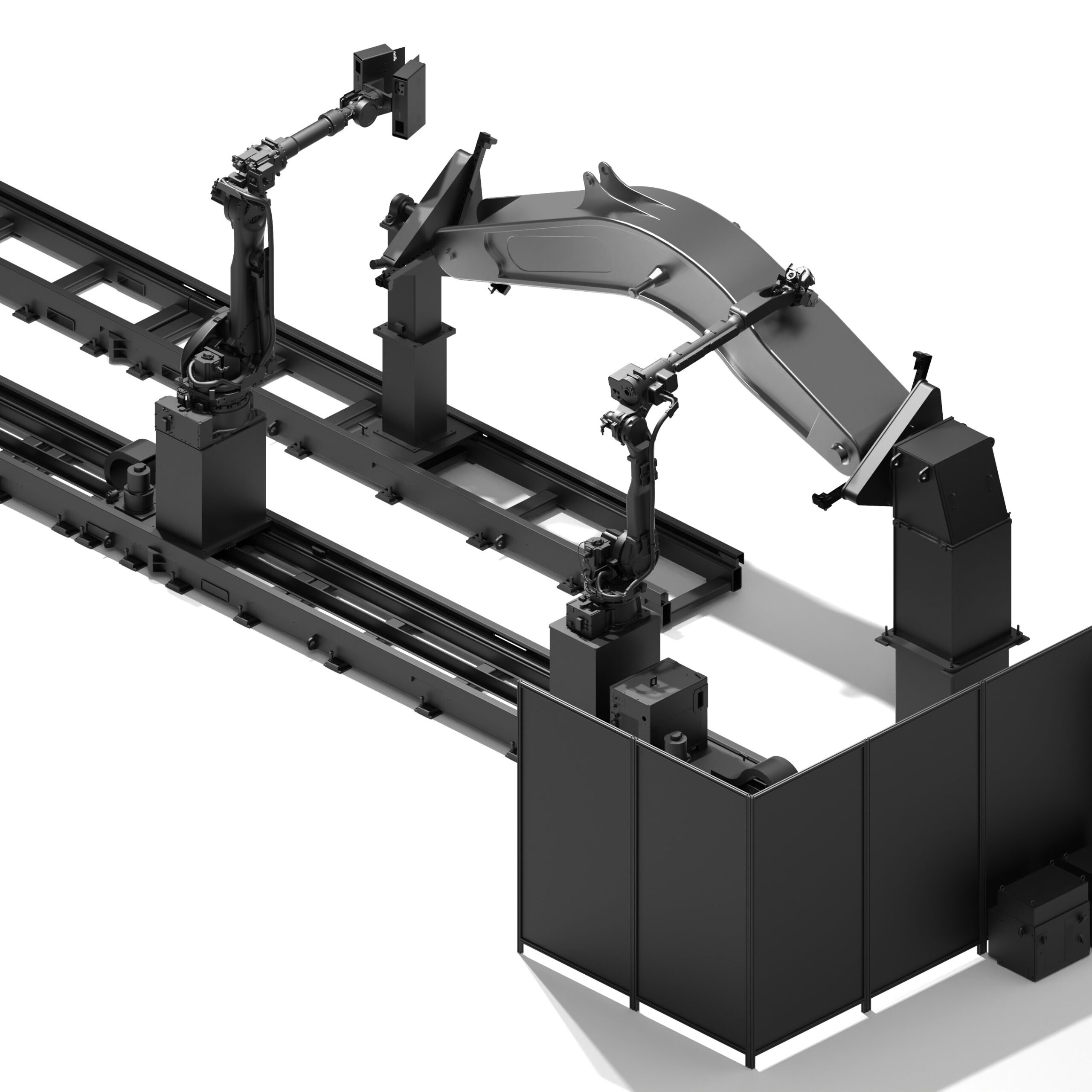

Our AW-3 cell can increase your throughput by accommodating up to three welding arms.

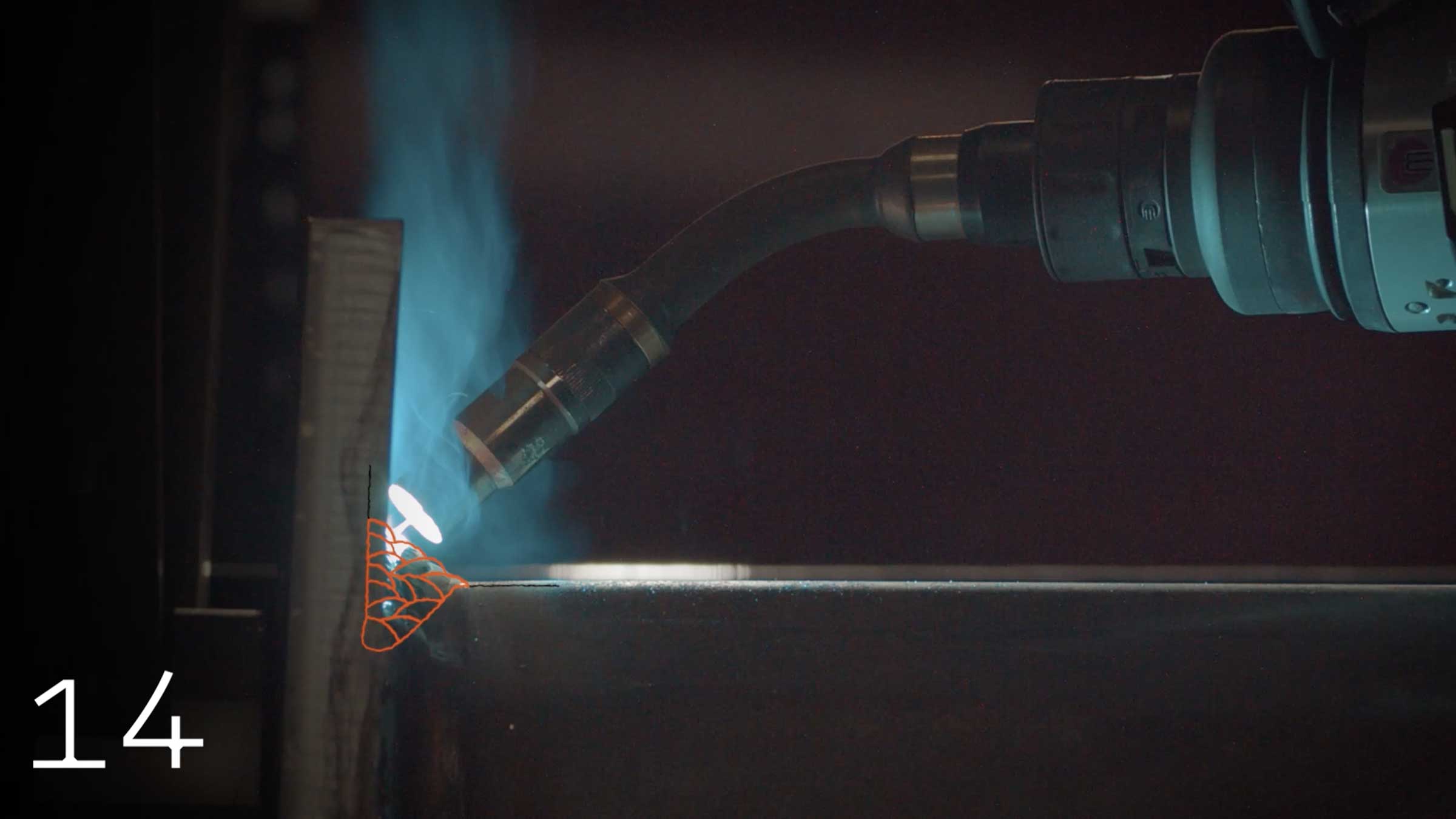

Adaptive Fill Platform

Detects variable root gaps and bevel angles

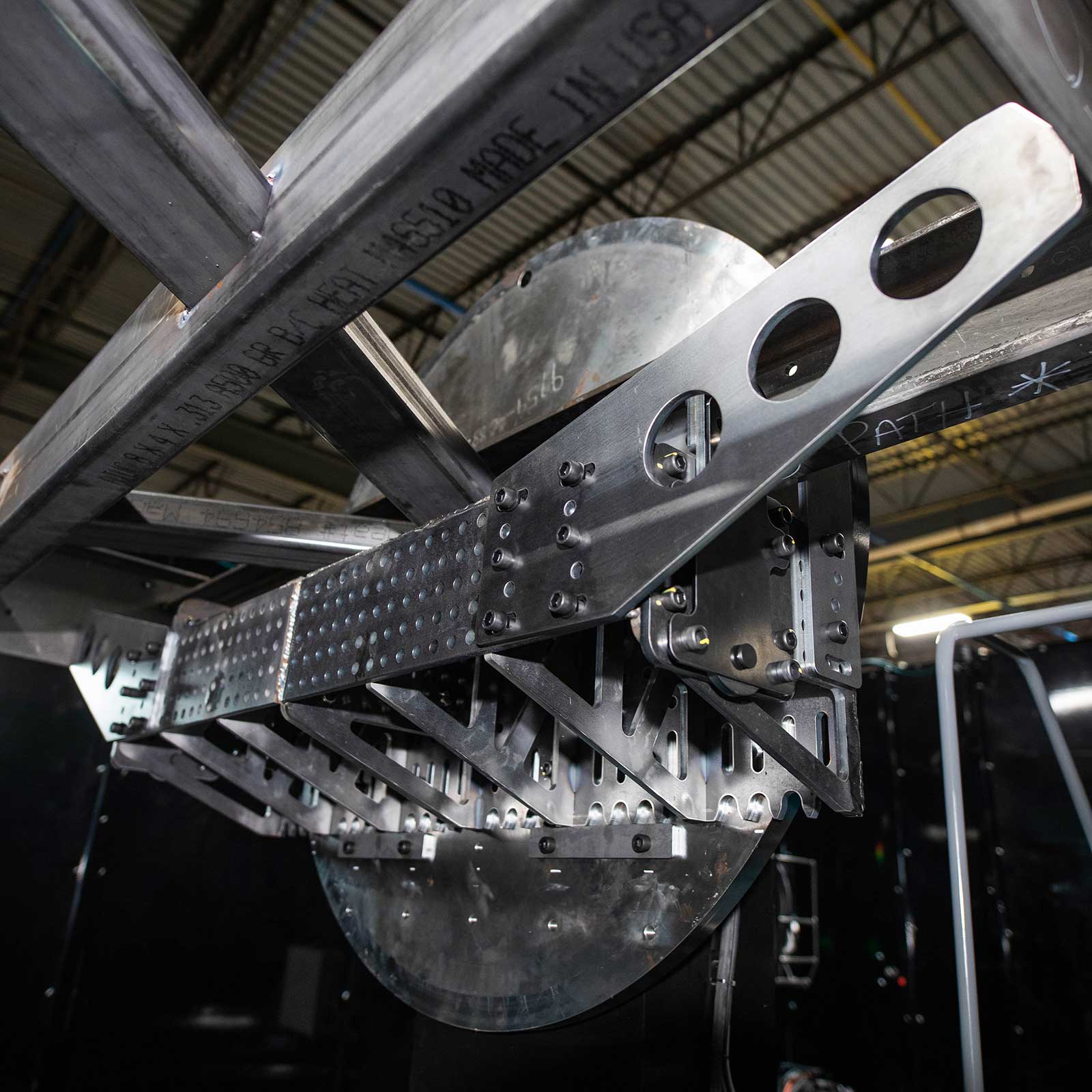

Modular Fixturing

Fixture in days, not weeks

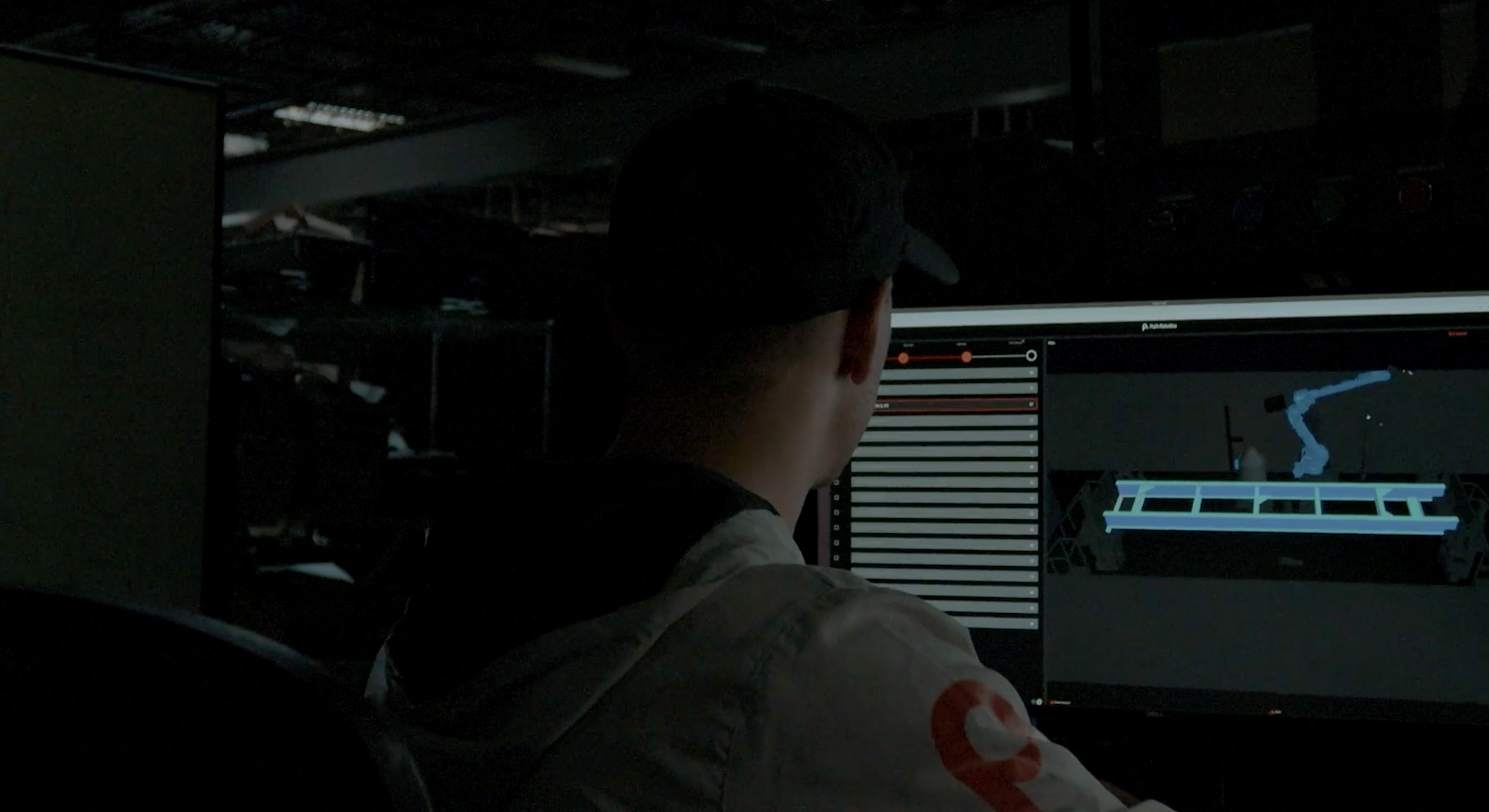

Autonomous Path Planning

Removes the need for programming and programmers

Miles of quality weld completed every single month

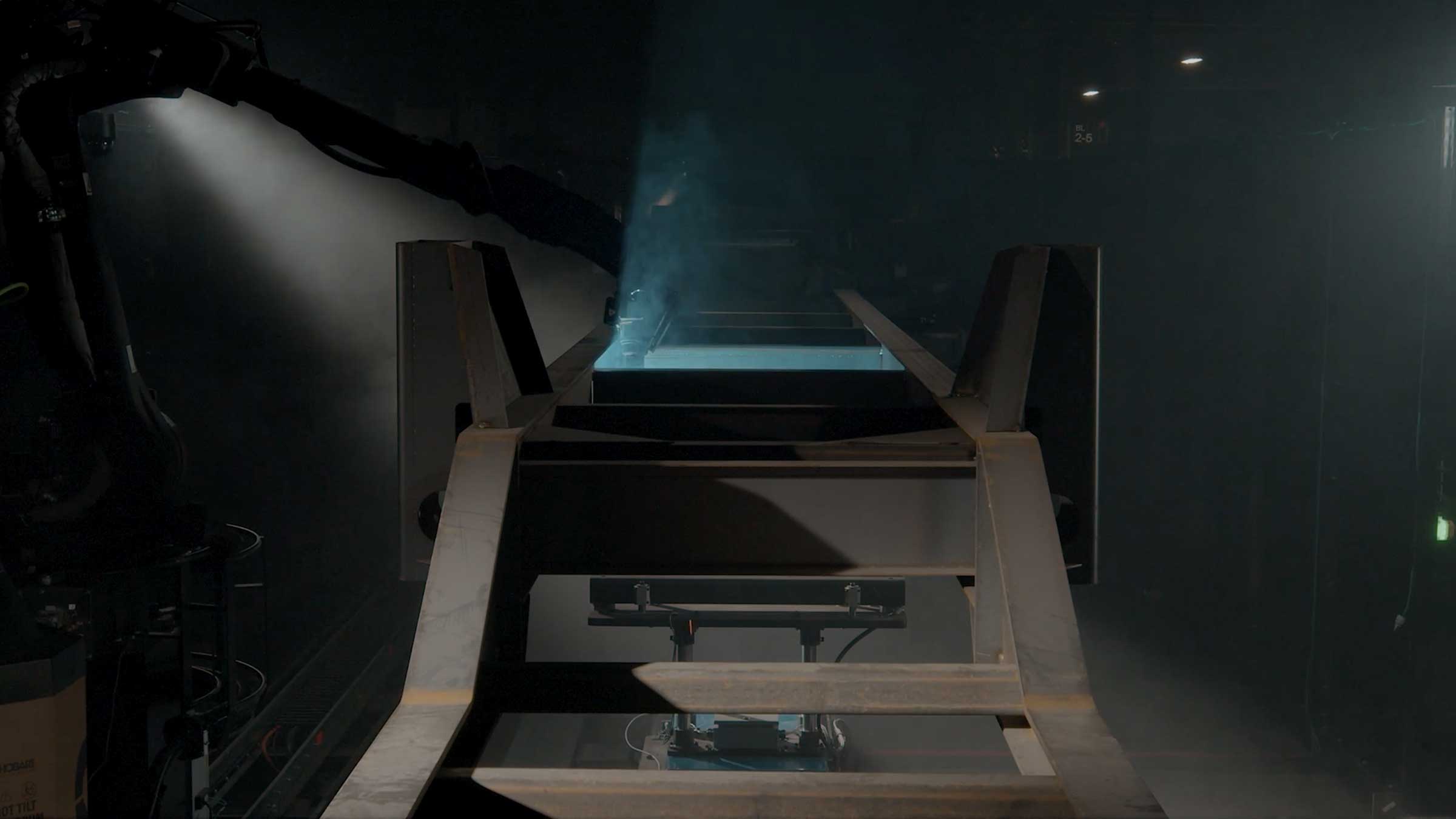

Meeting Customer Demand

We can’t hire enough people to produce enough trailers that our customers need right now. If we can’t give the customer what they need, they have to go without it or they have to find another manufacturer that can supply them and the Path cell provided us an opportunity to supplement our production.

Garry Hartman – Cheetah Chassis

RaaS, not CapEx

When you can’t find people, the only option is automation. When I first was introduced to the PATH system, my initial thought was, ‘That’s amazing. That’s great. We’re never going to be able to afford it.’ But having robots as a service versus a CapEx was a no brainer for us.

Nicholas Kiederlen – LeMar Industries

Seen Enough?

Industry Applications

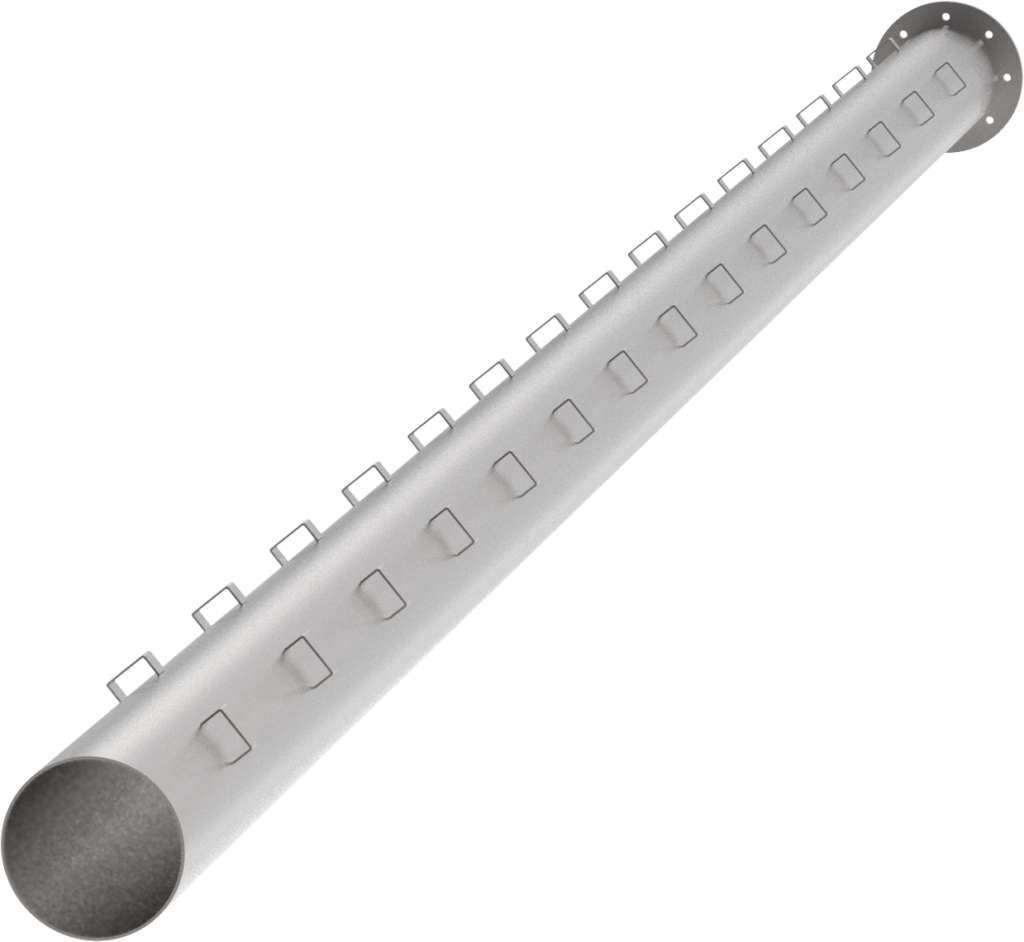

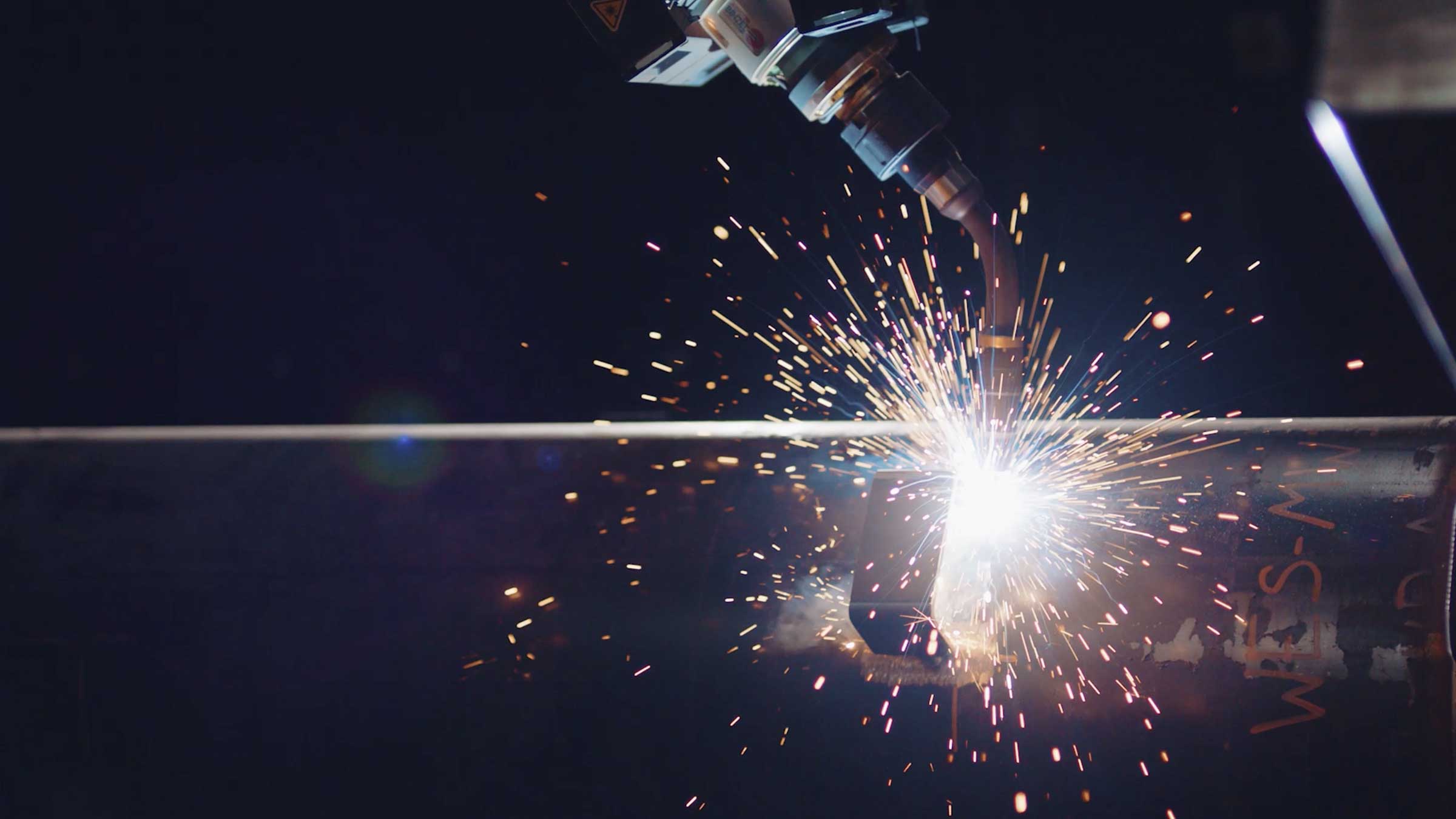

Structural Poles

Long sided and rounded poles up to 85” baseplate diameter and 25,000 lbs. Capabilities include baseplates, attachments, brackets, ground sleeves, bearing plates, and more.

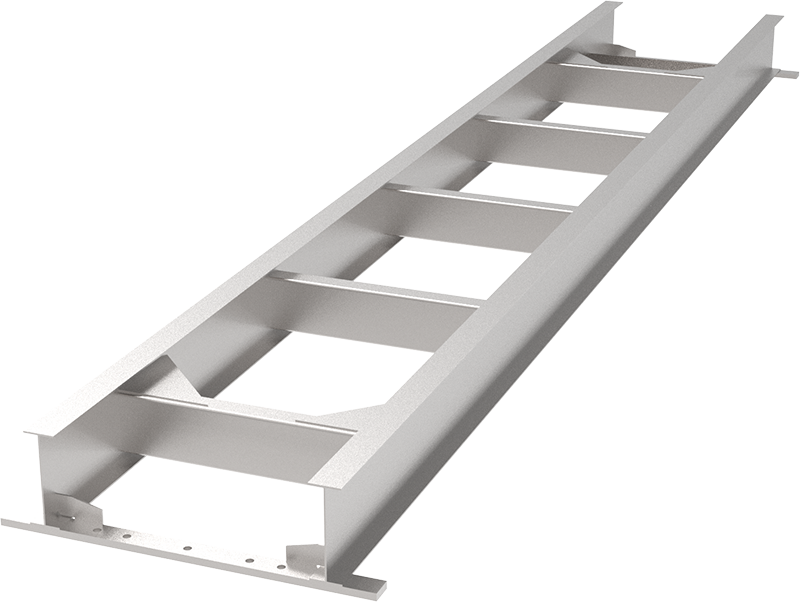

Structural Frames

Frames up to 96” in width and 25,000 lbs. Capabilities include cross members, frame rails, landing gear, gussets, stiffeners, assemblies, and more.

Screws

Screws with helicoid or sectional flights.

Joint Types

T-joints and butt joints

T-joints, lap joints, and butt joints

Flight to pipe: T joints


Weld Types

Fillet, bevel, flare and v-groove

Fillet, bevel, and flares

Fillet


Multi-pass and Single-pass

Both

Both

Single Pass


Complete Joint Penetration & Partial Joint Penetration

Both

Both

Both


Joint Thicknesses

up to ½-in

between ⅛-in and ⅜-in

between ⅛-in and ⅜-in


Steels

Carbon steels

Carbon steels

Carbon steels

Structural Poles

Long sided and rounded poles up to 85” baseplate diameter and 25,000 lbs. Capabilities include baseplates, attachments, brackets, ground sleeves, bearing plates, and more.

Joint Types
T-joints and butt joints

Weld Types
Fillet, bevel, flare and v-groove

Multi-pass and Single-pass
Both

Complete Joint Penetration & Partial Joint Penetration
Both

Joint Thicknesses
between ⅛-in and ⅜-in

Steels
Mild steels

Structural Frames

Frames up to 96” in width and 25,000 lbs. Capabilities include cross members, frame rails, landing gear, gussets, stiffeners, assemblies, and more.

Joint Types
T-joints, lap joints, and butt joints

Weld Types
Fillet, bevel, and flares

Multi-pass and Single-pass
Both

Complete Joint Penetration & Partial Joint Penetration
Both

Joint Thicknesses
up to ½-in

Steels
Mild steels

Screws

Screws with helicoid or sectional flights.

Joint Types
Flight to pipe: T joints

Weld Types
Fillet

Multi-pass and Single-pass
Single Pass

Complete Joint Penetration & Partial Joint Penetration
Both

Joint Thicknesses
between ⅛-in and ⅜-in

Steels
Mild steels
