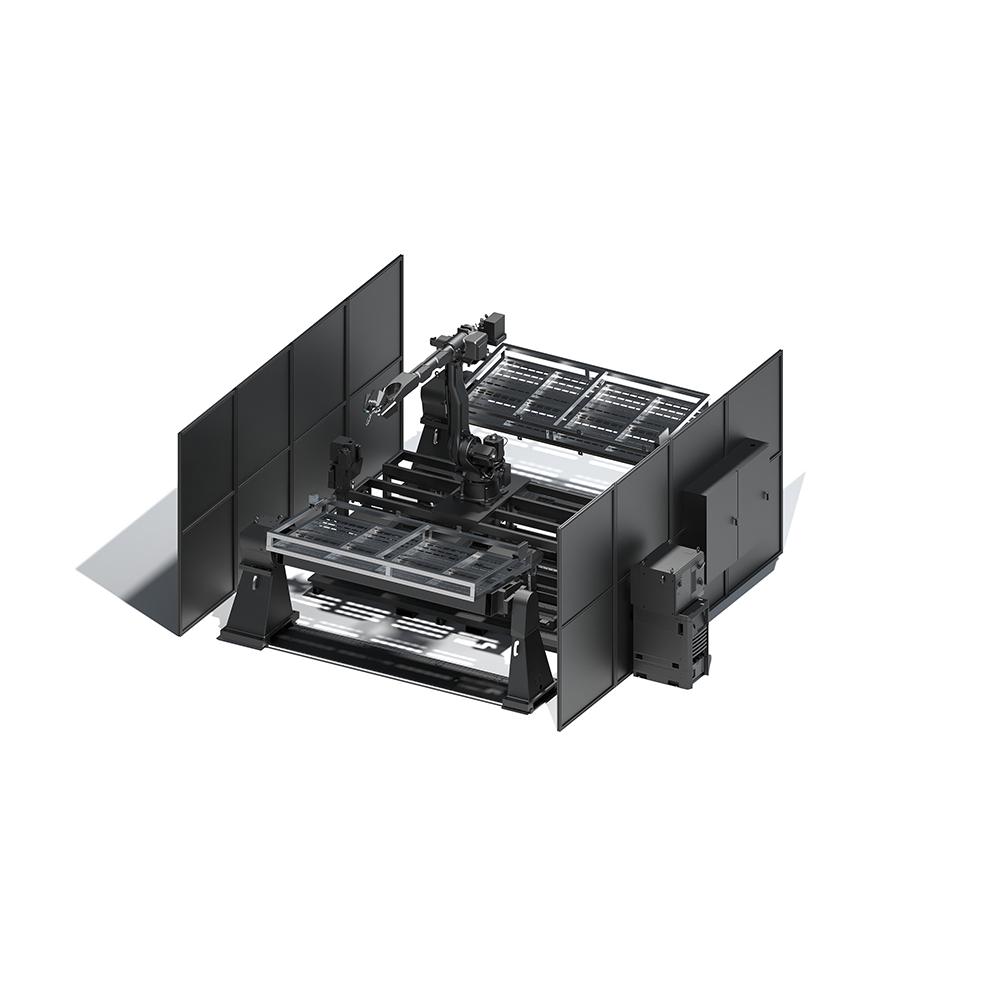

AW2
The AW-2 brings autonomous finish welding to small and mid-size parts. The flexibility of the AW-2 eliminates the need for custom, rigid fixturing, and precise part placement.
Path Robotics leverages proprietary sensing and robotic AI to make intelligent welding cells that accommodate a range of part sizes. We use computer vision to “see” any weldment, locate it in space, and use robotic AI to autonomously determine and execute optimal motion planning.
At A Glance
Flexible Fixturing System
The AW-2 handles a huge variety or parts large & small. It’s modular and designed to custom to fit a typical human weld space.
Weld-Intelligent Path Planning
Automated path planning leverages built-in weld process intelligence to generate optimal path plans, work, and travel angles based on part’s size and location in space

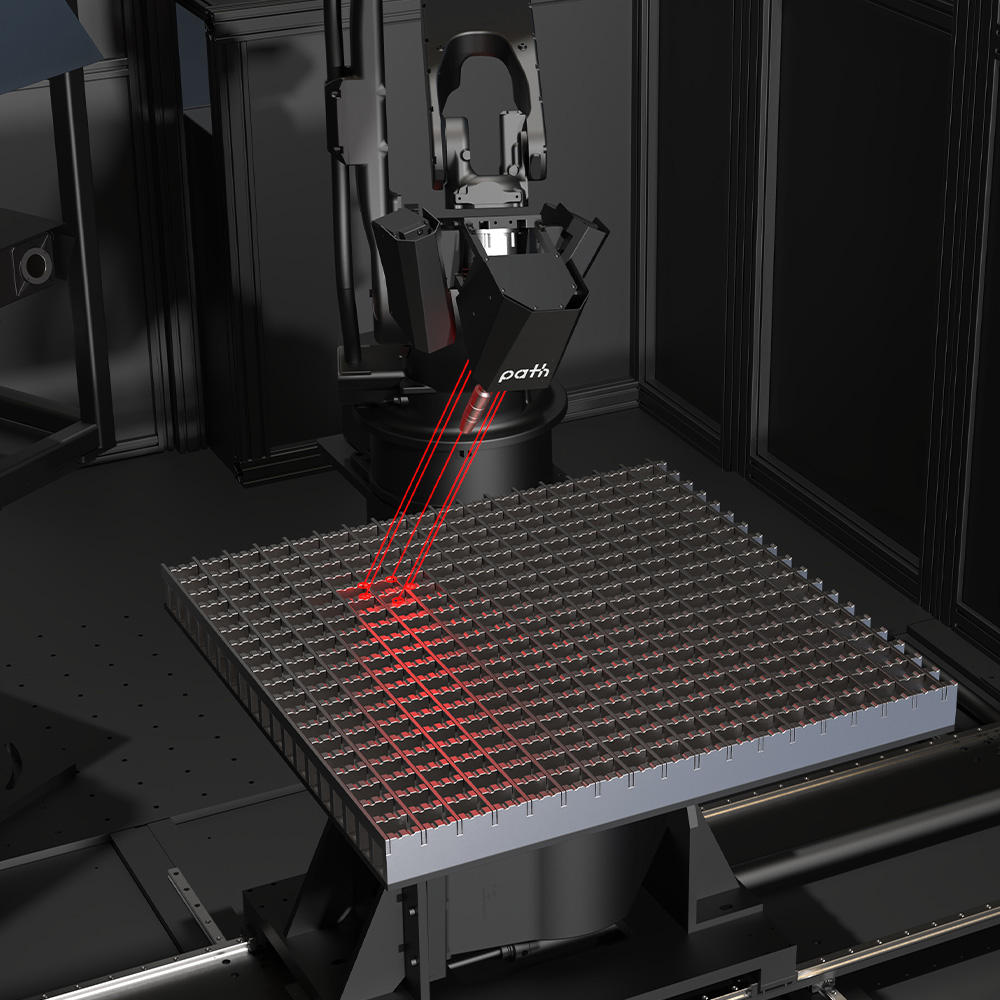

Optical Part & Feature Recognition
Designed for high-mix, high part-to-part variability. No need for perfect parts or precise positioning.
Automatic System Calibration
The robot learns your parts, optimizes for quality and efficiency. A single cell can weld multiple parts, just like a human welder.
About The System
Lorem Ipsum
Lorem Ipsum
Which Model is Right For You
The AW-2 brings autonomous finish welding to small and mid-size parts. The flexibility of the AW-2 eliminates the need for custom, rigid fixturing, and precise part placement.

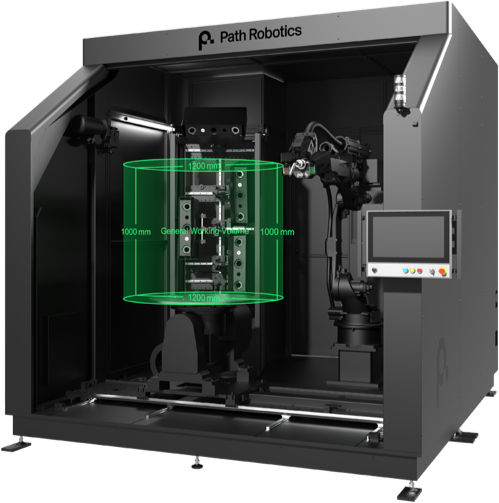

AW2 TTTT
Titlt Turn: part envelope of 2ft. tall with a 2.5 ft. sweep
- Position Type: Tilt Turntable (D50008)
- Max Working Volume: 1200mm x 1000mm
- Max Capacity: 1000 lbs
- Scanner Style: Static
- Torch: Abirob w500 Welding Torch
- Safety Standards: RIA/ISO 13849, OSHA, NFPA 79

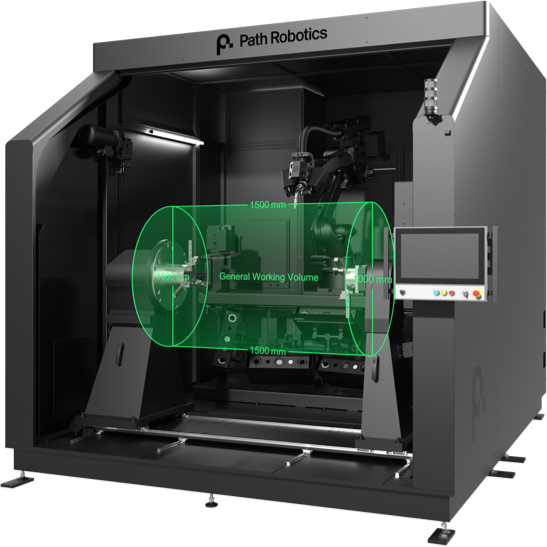

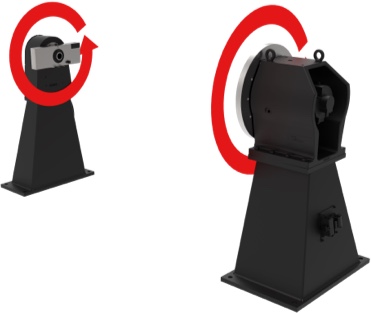

AW2 HSTS
HS/TS: part envelop of 4ft. long with a 2 ft. sweep.
- Position Type: Tilt Turntable (D50008)
- Max Working Volume: 1500mm x 1000mm
- Max Capacity: 6600 lbs
- Scanner Style: Static
- Torch: Abirob w500 Welding Torch
- Safety Standards: RIA/ISO 13849, OSHA, NFPA 79
Autonomous Welding Functions

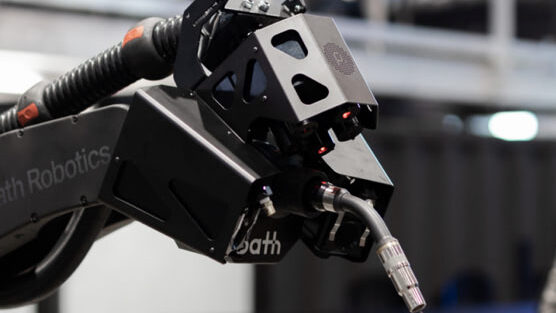

Autonomous Welding
Path’s intelligent weld cells autonomously plan weld paths with coordinated positioner motion, and execute high quality, uniformly sized single pass and multi-pass welds. Autonomous welding eliminates the need for traditional robotic.
Learn more about autonomous welding
- Autonomous Welding is limited to certain materials and finishes based on their reflectivity because we use optical sensing
- Supported weld types are limited to Fillets, and Single Bevels (with Multi-Pass Adaptive Fill)
- Joints are limited to T Joints, Laps and Corner Welds
- Welds rely on preconfigured weld programs developed by our team of weld engineers
- Only certain geometric characteristics are supported
- Parts must be tacked; maximum tack size is 1/8-inch (or half the size of the weld)
- Passes cannot be distributed among features; pause between passes must be used
Intelligent Path Planning
Path’s automated path planning leverages built-in weld process intelligence to generate optimal path plans, work, and travel angles based on part’s size and location in space, the part’s weld objectives, obstacles located near the part and in the cell, and the positioner system available in the cell. Built-in weld intelligence and automated path generation make robotic welding accessible by eliminating the need to program robots.
Your new team of welders has arrived.
Get in touch with one of our Path Experts to see how we can help bring consistency
and efficiency to your shop floor.
Working With Path
Risk-free path to deployment
We work with you every step of the way, from our factory floor to yours. To ensure our partners are supported, Path takes care of the software, hardware, service, and preventative maintenance. Path’s goal is to continually improve our technology to support our partners’ business needs.
.01
Identify Parts
.02
Choose & Reserve Your Cell
.03
Live Run-off at Path
.04
Delivery, Implementation, & Training
.05
Live
The Pricing Model
Your new 12-month labor contract
Path is a true “turn-key” solution to the labor you cannot find. By leveraging the Path solution, there is no need for fabricating expensive tools/fixtures. We take care of the hardware and the software to ensure the product always performs effectively to weld your parts. Think of it as your new 12-month labor contract. This gives you an instant return on your investment.
Path is not a capital expense. Think of it as an OpEx. There’s no upfront cost – you don’t pay until the cell is In-Service.
